Drilling Rigs

Showing all 5 results

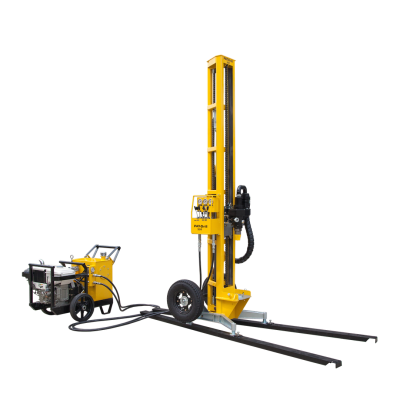

  • PAT-Drill 301

    The oldest PAT-Drill model and still in constant production and has many design refinements through its 25 years.

    With a 'stand alone' mast unit it can be simply transported and man handled on drill sites – some with tight access.

    Rig is powered by a stand alone power pack with a heavy duty Diesel engine or lightweight Petrol engine option.

    Ideal application sedimentary mud drilled holes to 100 m depth 100-200 mm diameter.

    The PAT-Drill 301 remains a popular PAT Models having been developed and refined through 15 years of continuous production and deployment on a wide variety of international drilling projects.



    DOWNLOAD PDF  MORE PICTURES



    Product Detail

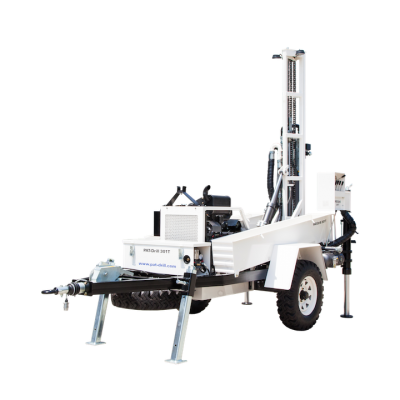

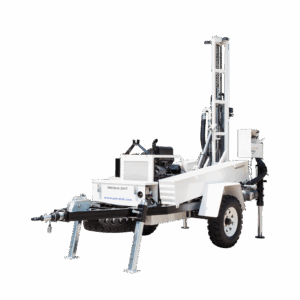

  • PAT-Drill 301T

    The PAT-Drill 301T is a fully featured top drive rotary rig able to complete holes in hard or sedimentary rock.

    It is one of the lightest rigs in its class and able to be towed behind most common pick – up trucks.

    This is the PAT ‘best seller’ for rural water supply holes in hard rock areas.

    For down-the-hole-hammer and mud rotary drilling up to 150 m depth 100 – 152 mm diameter DTH & 200 mm mud – according to tool selection.



    DOWNLOAD PDF  MORE PICTURES



    Product Detail

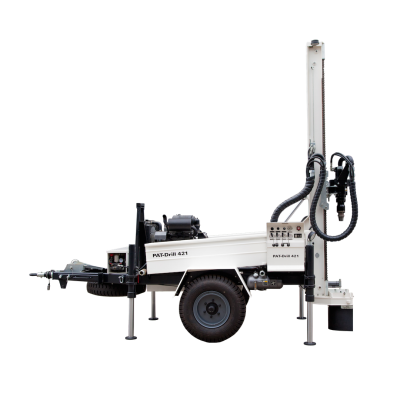

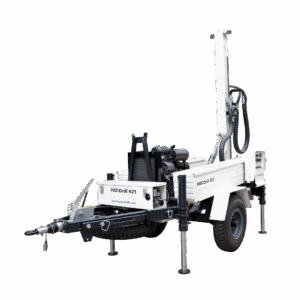

  • PAT-Drill 421

    The PAT-Drill 421 is a heavy duty version of the compact trailer mounted rig. With a heavier and stronger mast, chassis and power pack it provides an alternate machine – ideally suited to being towed by light truck or Land Cruiser.

    For down-the-hole-hammer and mud rotary drilling up to 180m depth 100-165mm diameter – according tool selection.



    DOWNLOAD PDF  MORE PICTURES



    Product Detail

  • PAT-Drill 431

    PAT-Drill 431 is a truck mounted drill rig powered by a deck engine mounted on a rail chassis to fit any suitable 6,500 GVW truck chassis.

    For down-the-hole-hammer and mud rotary drilling up to 200 m depth 100-165 mm diameter – according to tool selection.

    (Thailand market only)

    DOWNLOAD PDF  MORE PICTURES



    Product Detail

  • PAT-Drill 501

    PAT-Drill 501 Truck mounted rigs retain the inherent simple operating concept of PAT-Drill 421 & 431 but are significantly a heavier and more robust machine able to comfortably drill holes at a higher specification.

    For Down-The-Hole-Hammer and Mud rotary drilling up to 300 m depth 150-245 mm (6″-10″) diameter – according to tool selection.

    Its is available as standard in 3 models:

    PAT-Drill 501 HINO 300 Series Truck Mounted

    DOWNLOAD PDF

    PAT-Drill 501m HINO 500 Series truck mounted and rear axle “no spin” differential system with 8×12 duplex piston mud pump

    DOWNLOAD PDF

    PAT-Drill 501 4×4 IVECO M150 truck mounted with 8×12 duplex piston mud pump

    DOWNLOAD PDF



    MORE PICTURES



    Product Detail
