PAT-Drill 501

PAT-Drill 501 Truck mounted rigs retain the inherent simple operating concept of PAT-Drill 421 & 431 but are significantly a heavier and more robust machine able to comfortably drill holes at a higher specification.

For Down-The-Hole-Hammer and Mud rotary drilling up to 300 m depth 150-245 mm (6″-10″) diameter – according to tool selection.

Its is available as standard in 3 models:

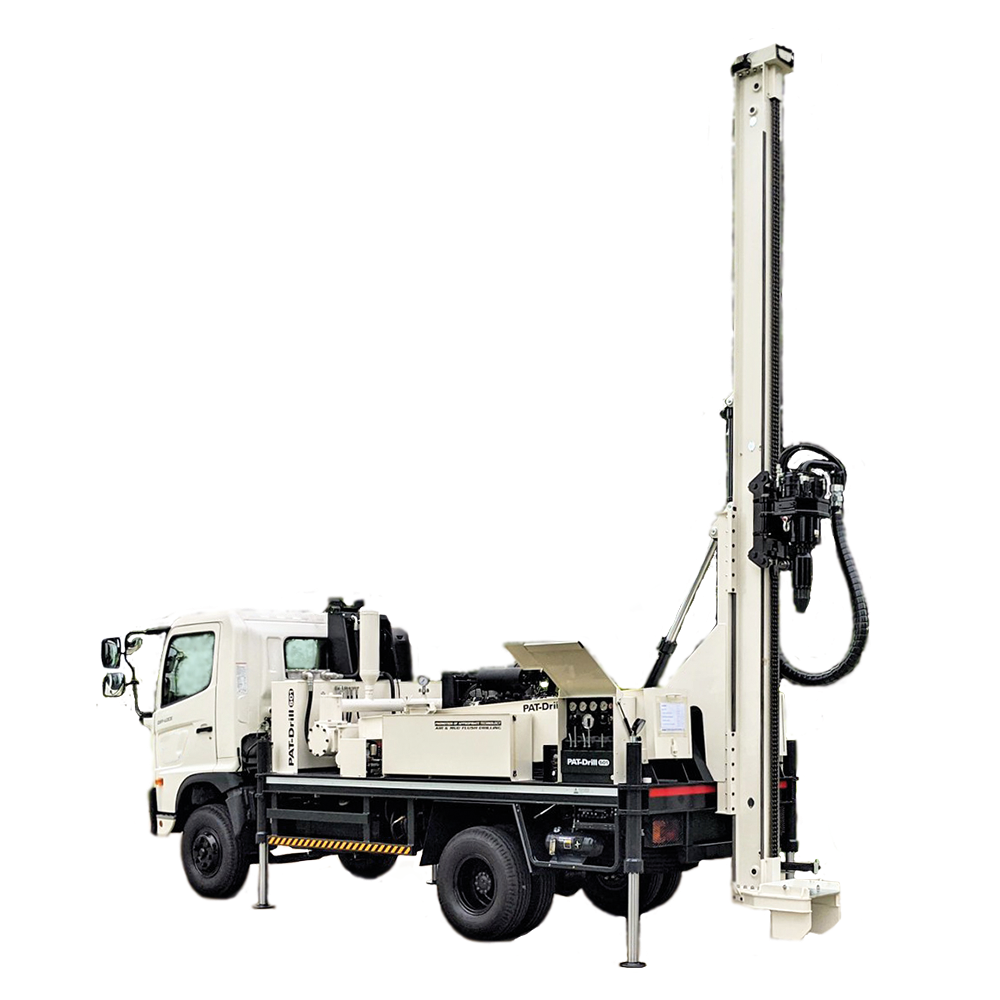

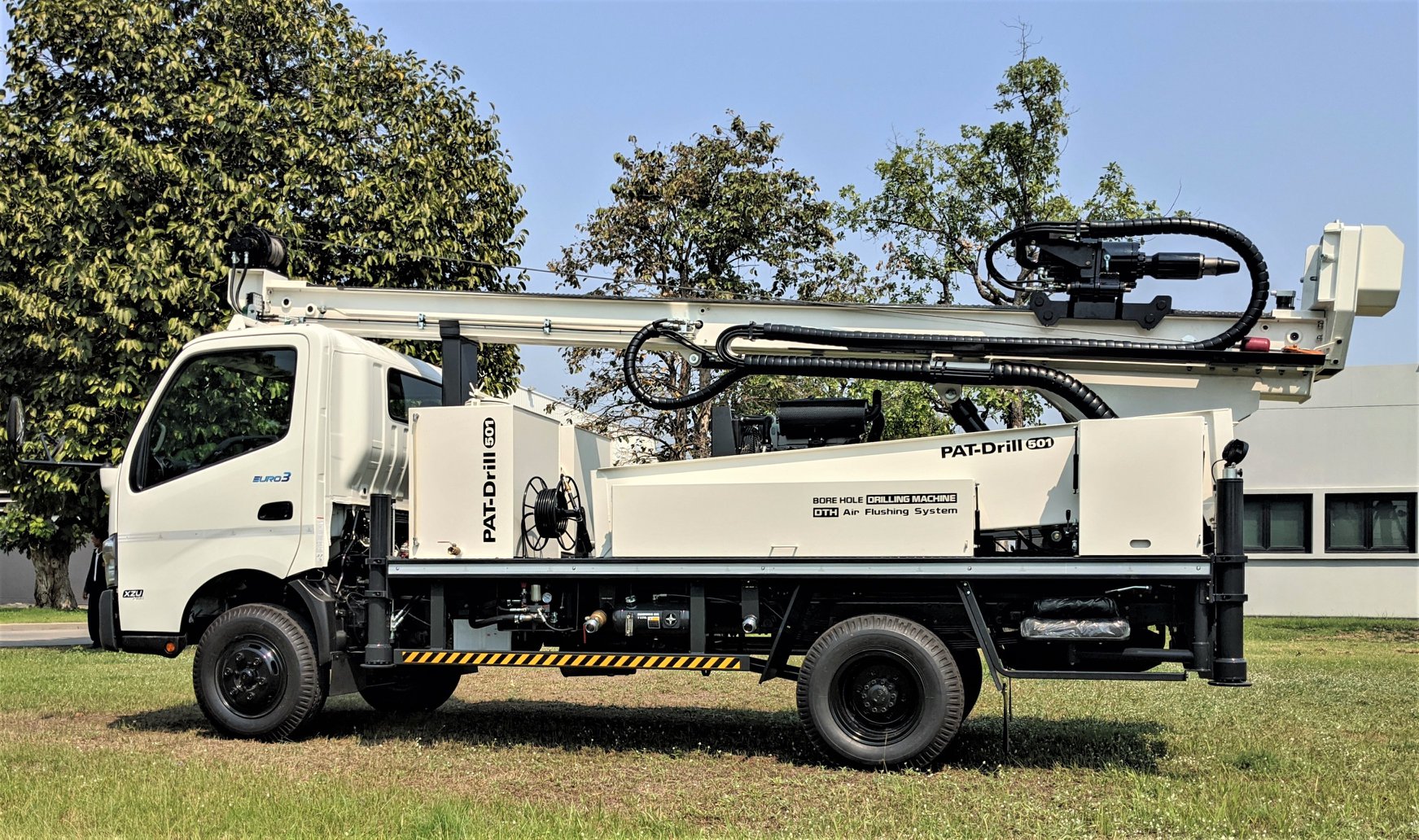

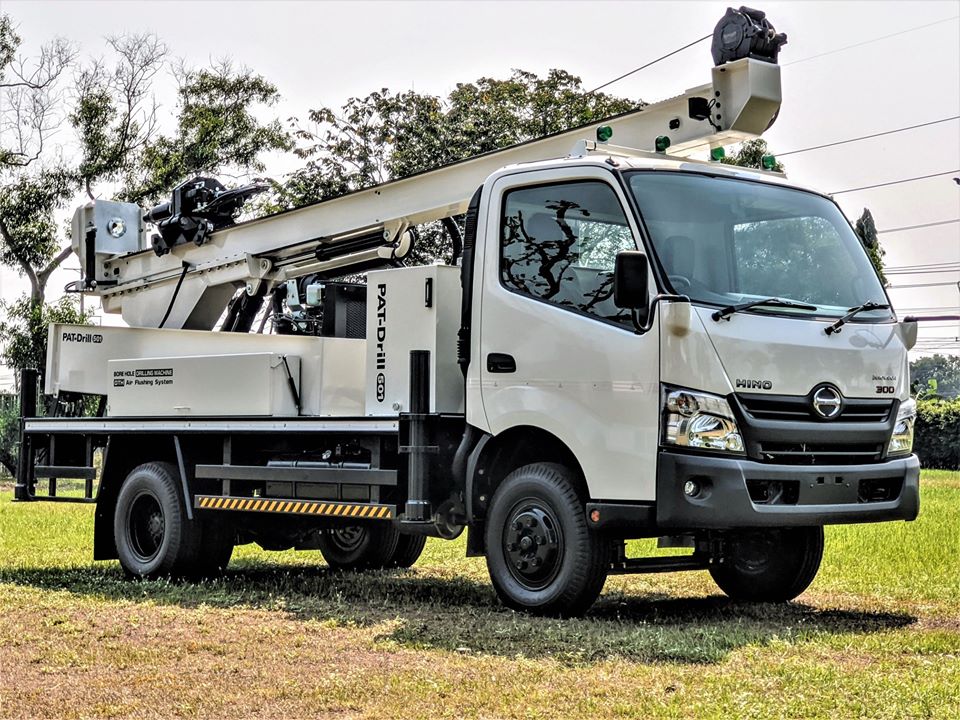

PAT-Drill 501 HINO 300 Series Truck Mounted

DOWNLOAD PDF

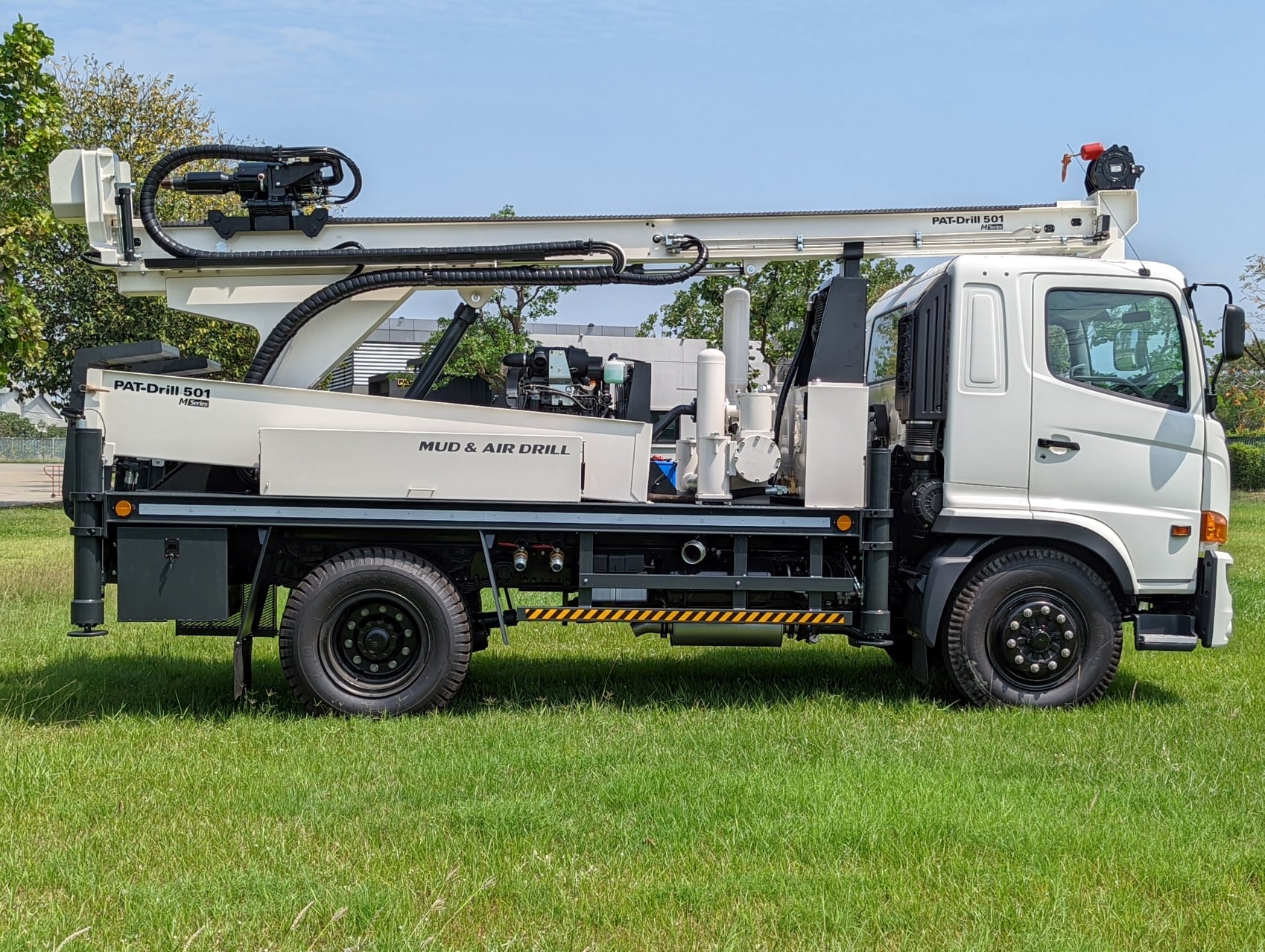

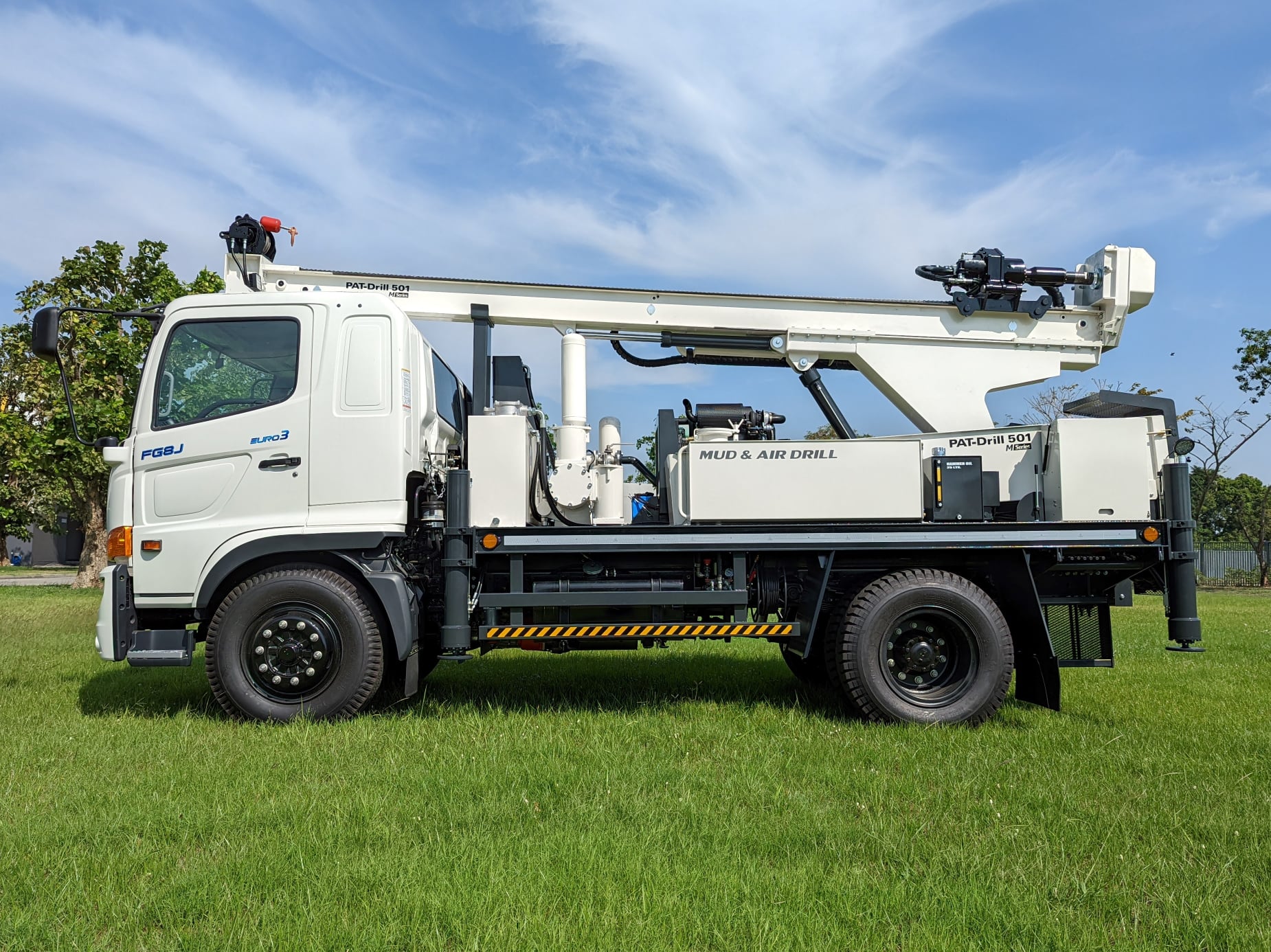

PAT-Drill 501m HINO 500 Series truck mounted with 8×12 duplex piston high pressure mud pump

DOWNLOAD PDF

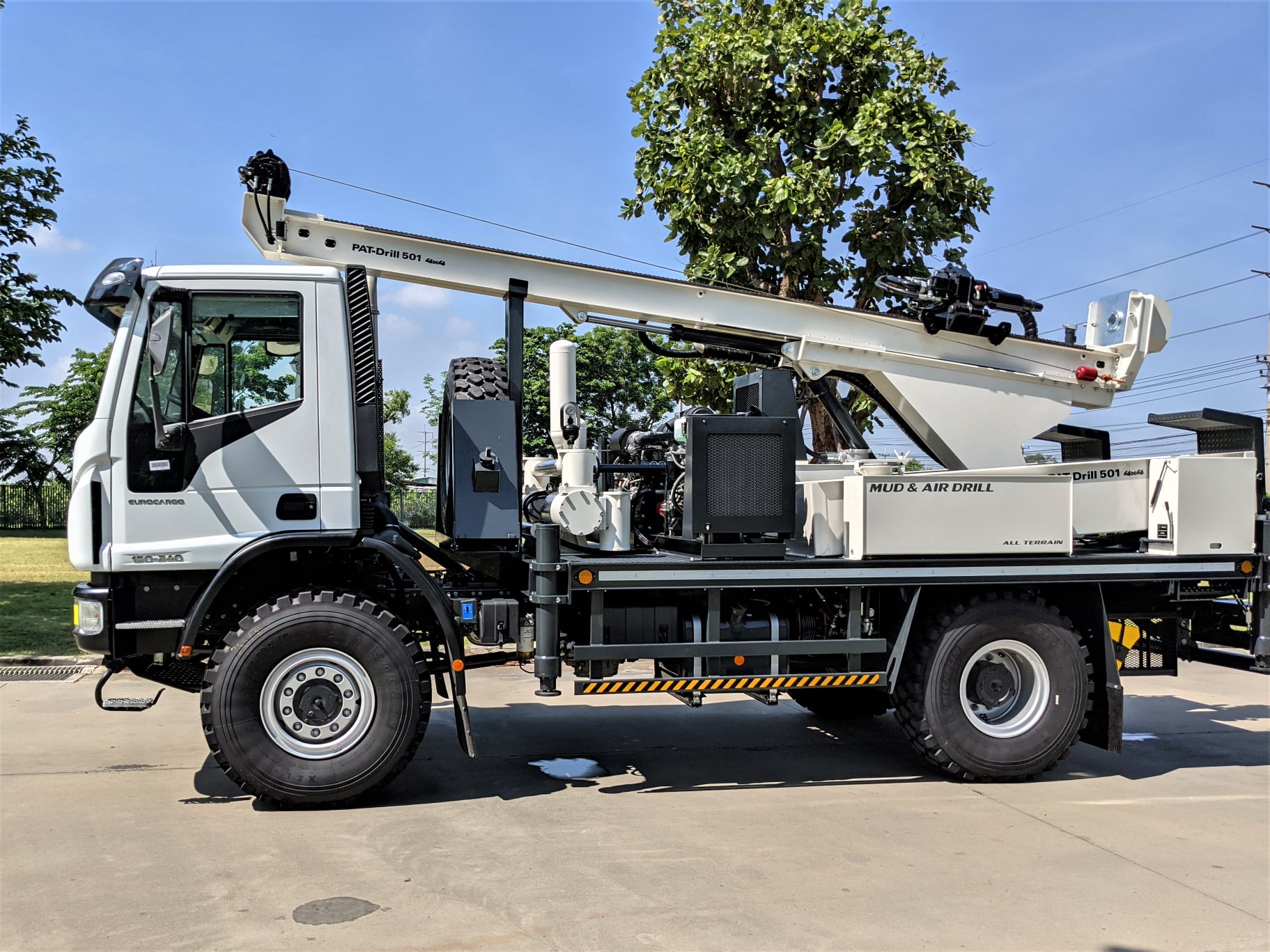

PAT-Drill 501 4×4 IVECO M150 truck mounted with 8×12 duplex piston high pressure mud pump

DOWNLOAD PDF



MORE PICTURES



Category:

Product Description

PAT-Drill 501 is a truck mounted drill rig power by a deck engine mounted on a rail chassis to fit any suitable .

It is mounted on a different suitable truck of (8,500) (9,900) and (15,000) kg gross vehicle weight (upwards) and is powered by deck mounted diesel engine and has built in foam pump.

Advantage, fast drilling with 90 mm diameter and 3 m long drill pipe.

High torque rotation head with dual hydraulic motors.

All service functions well arranged on easily operated control panel.
